RK3566, Android 11, RTC,Wake On Lan,MUC, HDMI 2.0 4K IPTV PC, WiFi6+Bluetooth 5.0, 4GB DDR4 + 32GB eMMC + Support up to 128GB TF/MicroSD,Fanless
Features
Reliable Enterprise Performance
MINIX X35-i Max Fanless Android box designed 4GB DDR4, 32GB eMMC 5.1 RK3566 Cortex-A55 Quad-Core, GPU Mali-G52-2EE, 6 layer PCB, Industrial grade components. Stable operation for long-term demands of digital signage and other commercial applications.

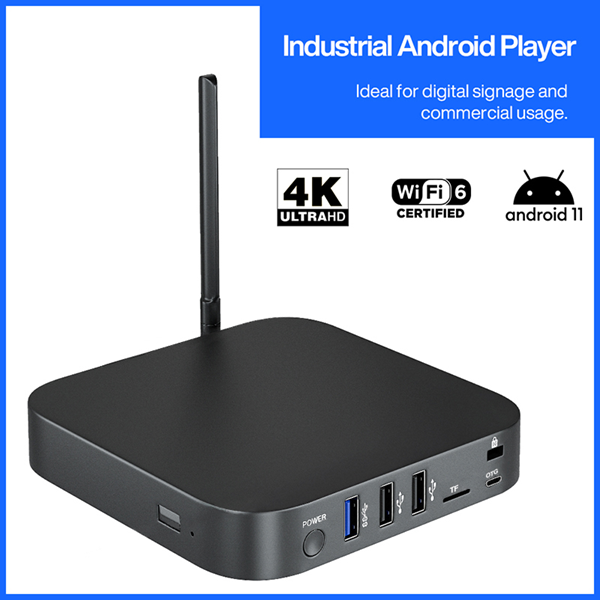

Ideal for Commercial and Industrial Applications

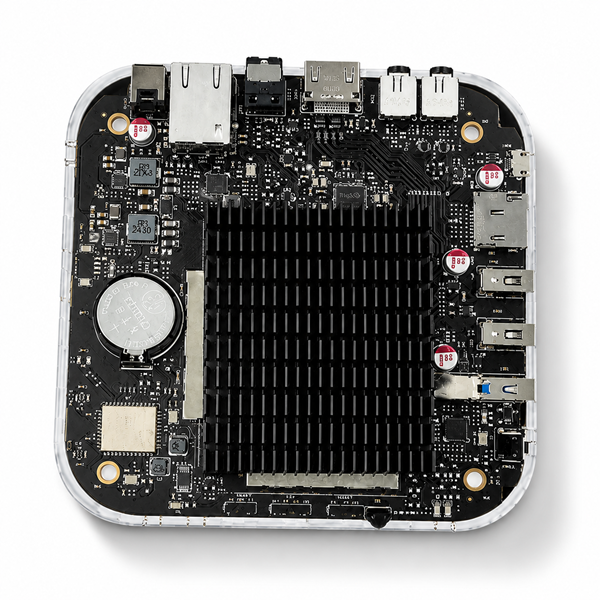

Built-in accordance to the most stringent industrial standards, X35-i Max is reliable throughout periods of continuous 24/7 operation. Support Wake On LAN, Auto Power, RTC , Watchdog. Reserved interfaces on the PCBA board, Debug/ICE/MUART pins Enable you can debug the machine according to your needs.
Fully Connectivity

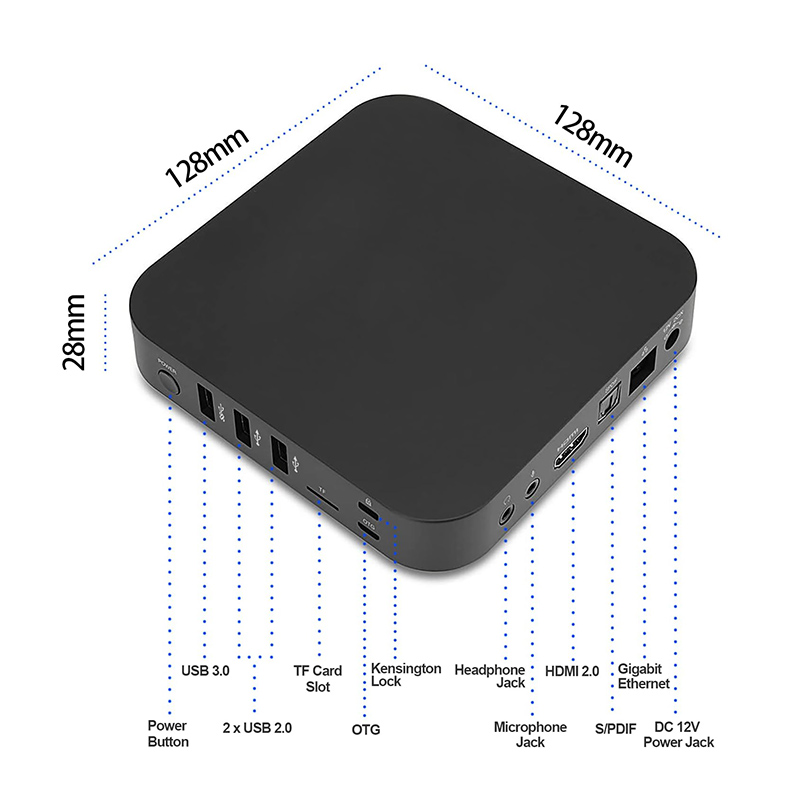

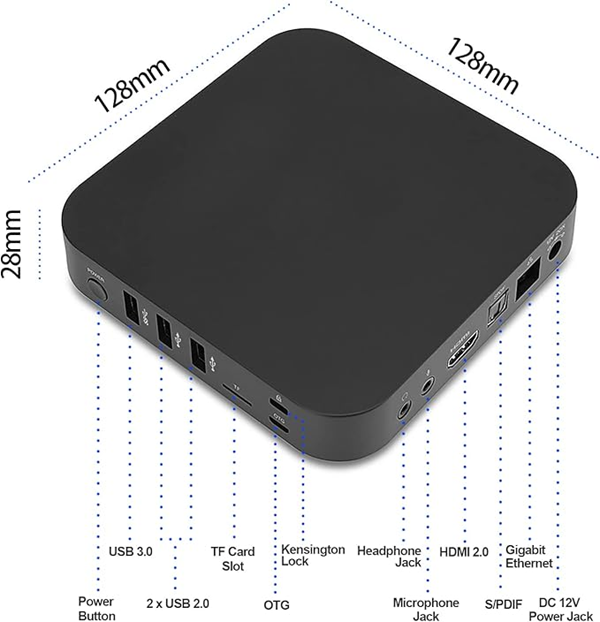

802.11 ax Dual-Band Wi-Fi 6, RJ-45 Gigabit wired networking, Micro SD card reader, HDMI Port , USB 3.0 x1, USB 2.0 x2, OTG Port x1, Kensington Lock, 3.5 mm Headphone jack. 3.5mm Microphone jack, IR Receiver.
4K Ultra HD Display （Up to 3840 x 2160 pixels.）
Fanless Design and EMI Signal masking，Silent Solution That’s Ultra Energy-Efficient.
Pre-Rooted firmware
Safety protect and low-power consumption
Other Features: Watchdog, HDMI CEC, Portrait mode, AC Power on, Wake On LAN
