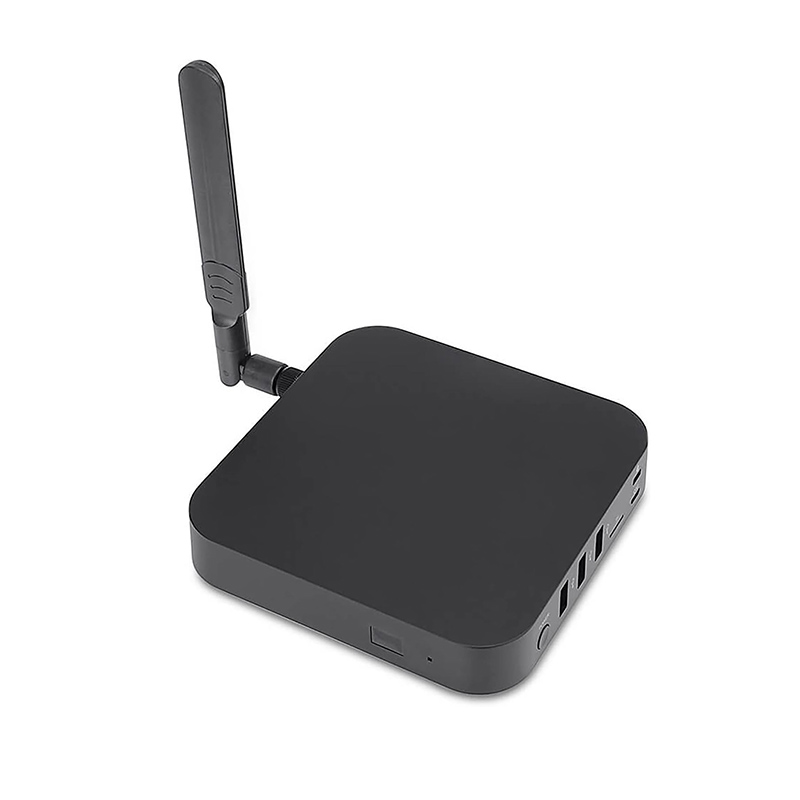

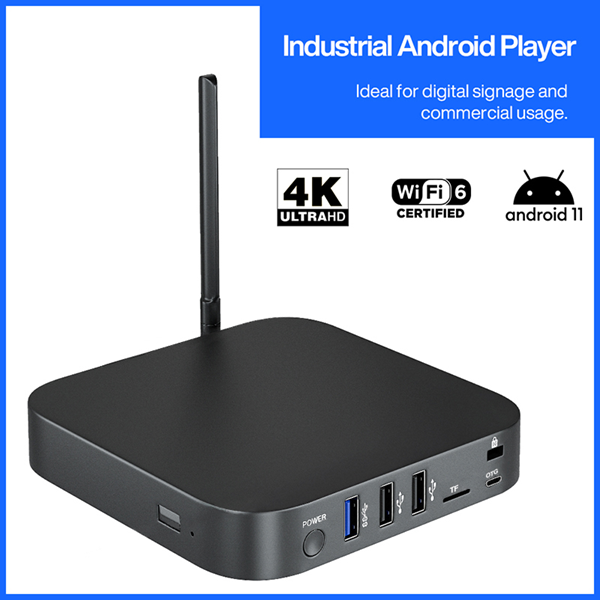

X35-i Max
Home - Products - Android Signage Player
Features


1. Industrial-Grade RK3566 Performance

Feature: Rockchip RK3566 Quad-Core Cortex-A55 processor with Mali-G52 GPU
Advantage: Delivers stable performance for digital signage, media playback and commercial applications
Benefit: Ensures smooth operation with reliable long-term deployment


2. Smooth 4K Ultra HD Playback

Feature: HDMI 2.0 output supports up to 4K@60Hz video decoding
Advantage: Provides clear and detailed visual content for large displays
Benefit: Ideal for advertising screens, information displays and interactive applications


3. Reliable 24/7 Industrial Operation

Feature: Watchdog, Auto Power On, Wake-On-LAN and HDMI CEC support
Advantage: Enables automatic recovery and remote device management
Benefit: Reduces maintenance cost for unattended commercial environments


4. Fast Wireless Connectivity

Feature: Dual-band Wi-Fi 6 and Bluetooth 5.0
Advantage: Provides faster network connection and improved wireless stability
Benefit: Supports cloud content updates and flexible installation scenarios


5. Compact & Flexible Design

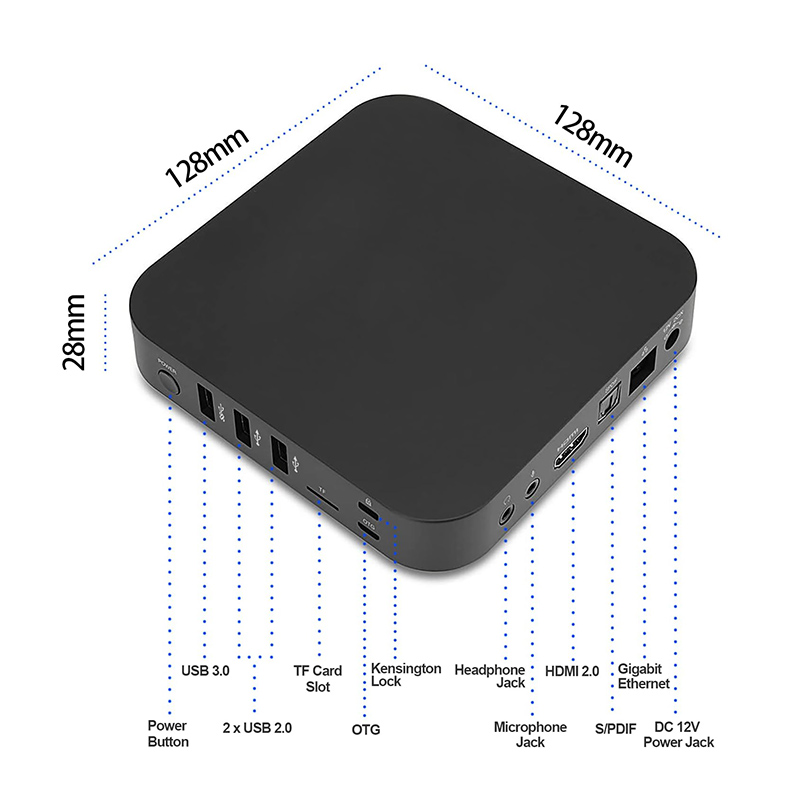

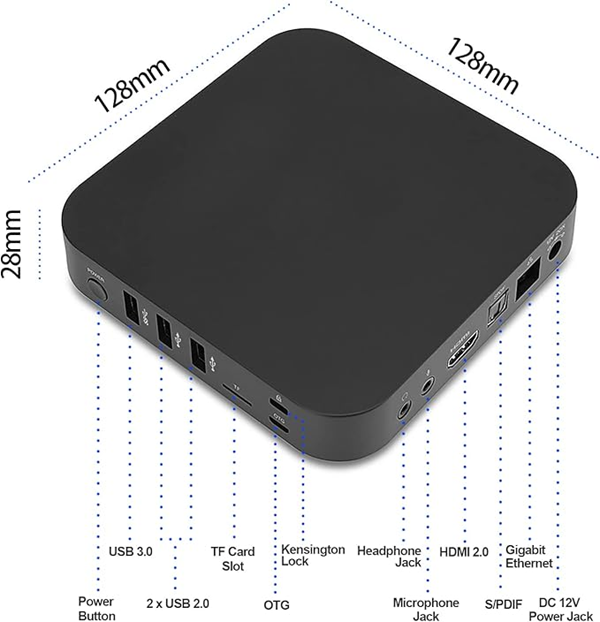

Feature: Compact metal housing with rich I/O interfaces
Advantage: Easy integration into professional display systems
Benefit: Suitable for space-limited digital signage and embedded applications

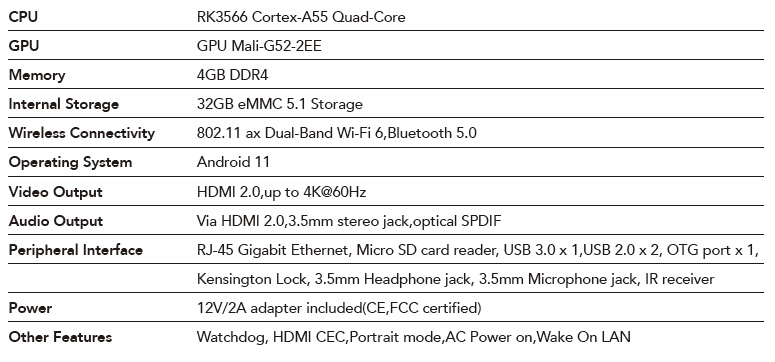

Specifications
Item Specification
Model X35-i Max
Processor Rockchip RK3566 Quad-Core Cortex-A55
GPU Mali-G52 2EE
Memory 4GB DDR4
Storage 32GB eMMC 5.1
Operating System Android 11
Video Output HDMI 2.0, up to 4K@60Hz
Audio Output HDMI 2.0 / 3.5mm Stereo Jack / Optical SPDIF
Wireless Connectivity Wi-Fi 6 (802.11ax) Dual Band / Bluetooth 5.0
Ethernet RJ45 Gigabit Ethernet
USB USB 3.0 ×1, USB 2.0 ×2, OTG ×1
Expansion Micro SD Card Reader
Other I/O IR Receiver, 3.5mm Headphone Jack, 3.5mm Microphone Jack
Features Watchdog / HDMI CEC / Portrait Mode / AC Power On / Wake-On-LAN
Power Input DC 12V

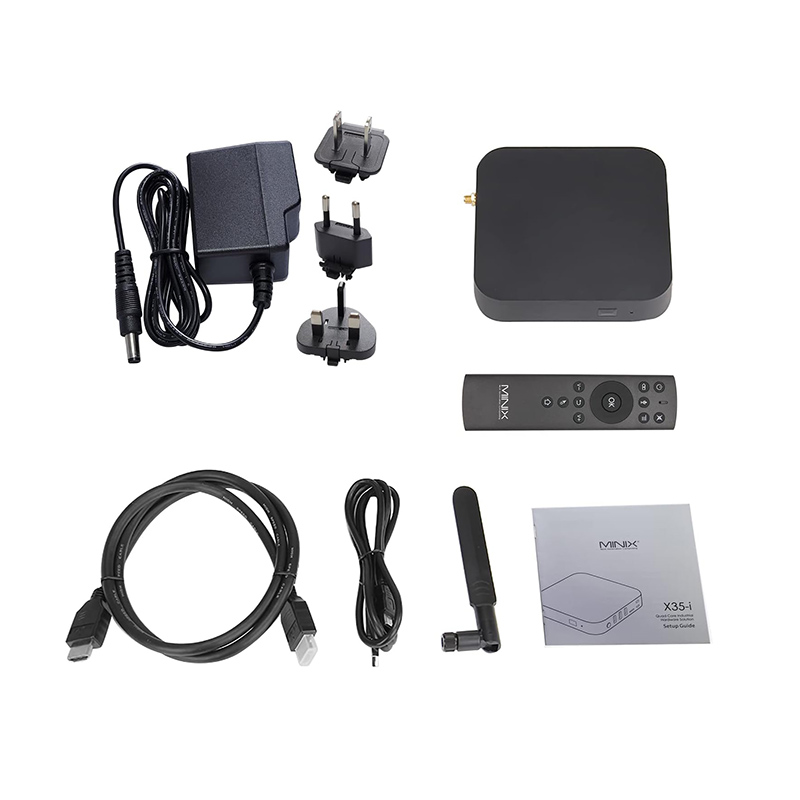

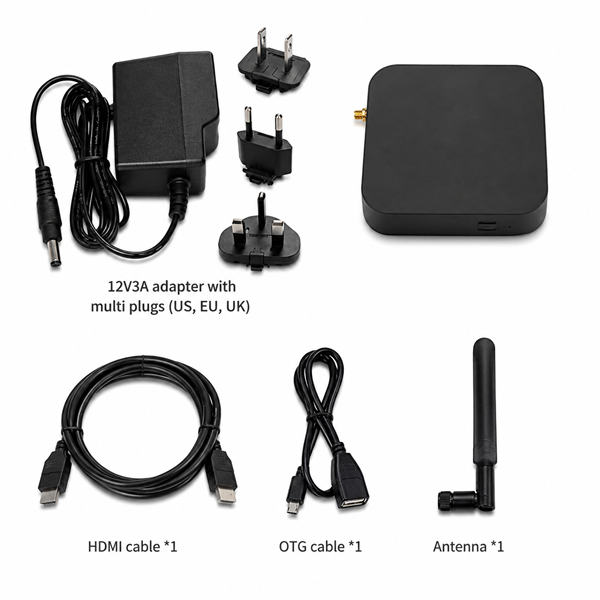

Adapter 12V/2A Adapter Included
Certification CE / FCC
Application Digital Signage / Retail / Education / Corporate / Hospitality
Dimensions Compact Industrial Design
