RK3566 Linux Industrial Embedded Computer with Fanless Design, Rich I/O Wide Temp Support.
| Item | Specification |
|---|---|
| Processor | Rockchip RK3566 Quad-core Cortex-A55, up to 1.8GHz |
| GPU | Mali-G52 2EE |
| Memory | 4GB LPDDR3 |
| Storage | 32GB eMMC |
| Operating System | Ubuntu 20.04 / Debian 11 |
| Video Output | 1 × HDMI 2.0, supports 4K@60Hz |
| Ethernet | 1 × RJ45 Gigabit Ethernet (10/100/1000Mbps) |
| WiFi / Bluetooth | Dual-band WiFi 2.4G/5G, Bluetooth 4.2 |
| USB | 1 × USB 3.0, 2 × USB 2.0 |
| Serial Port | 1 × RS232, 1 × RS232 (TTL), 1 × RS485 (TTL) |
| Audio | 1 × Audio Out, 1 × Microphone In |

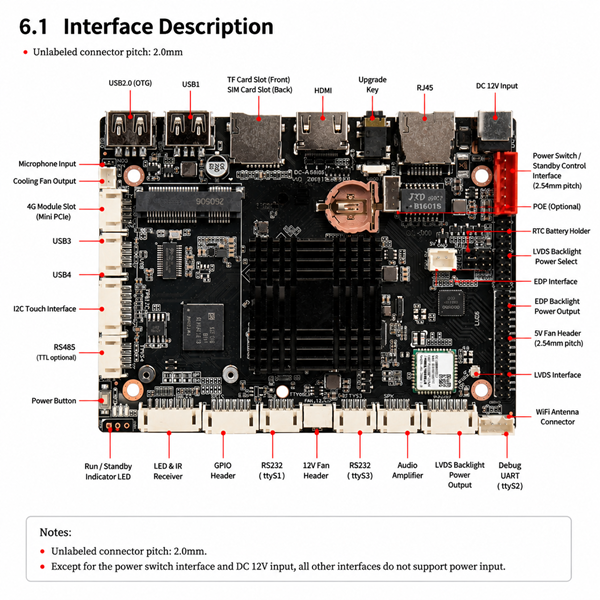

| Industrial I/O | GPIO, I2C, RTC, LVDS (Optional), EDP (Optional) |
| Expansion | 4G Module Support (Optional) |
| Power Input | DC 12V |
| Operating Temperature | -20°C ~ 60°C |
| Mounting | Wall Mount / Desktop |

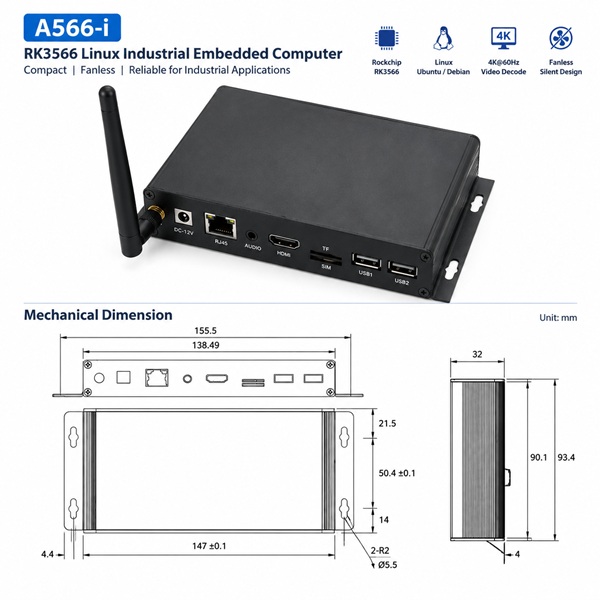

| Dimensions | 155.5 × 93.4 × 32 mm |
| Certification | CE, RoHS |
