Features

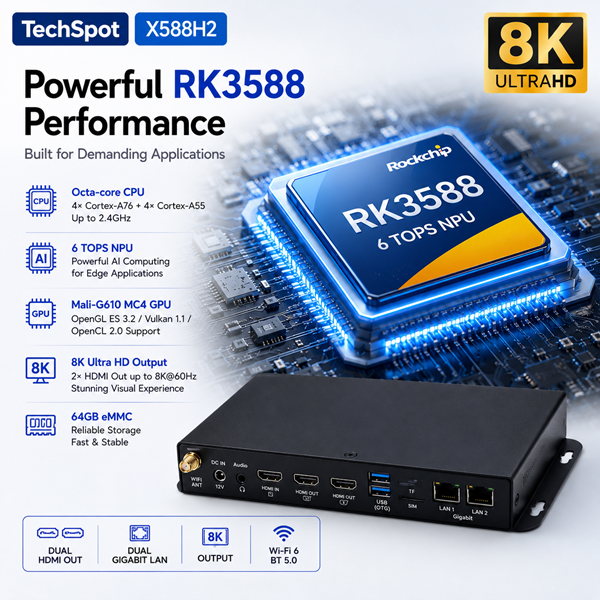

1. Powerful RK3588 Performance

Feature: Rockchip RK3588 Octa-core ARM SoC with 4× Cortex-A76 + 4× Cortex-A55, up to 2.4GHz, integrated 6 TOPS NPU.
Advantage: Delivers powerful CPU/GPU performance with AI acceleration capability for demanding commercial applications.
Benefit: Enables smooth multimedia playback, AI edge computing, smart control and interactive digital signage solutions.

2. 8K Multi-Display Capability

Feature: Dual HDMI OUT supporting up to 8K video output, plus HDMI IN supporting 4K input.
Advantage: Supports advanced video processing and high-resolution display applications.
Benefit: Ideal for digital signage, video walls, conference systems and professional display solutions.

3. Flexible Network Connectivity

Feature: Dual Gigabit Ethernet, Wi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.0, and optional 4G/5G LTE expansion via Mini PCIe.
Advantage: Provides stable wired and wireless communication options for various deployment environments.
Benefit: Suitable for remote management, smart terminals, transportation and outdoor commercial applications.

4. Industrial I/O Expansion

Feature: Supports USB, TTL, RS232, RS485, CAN and GPIO interfaces.
Advantage: Enables integration with external devices and industrial control systems.
Benefit: Provides flexible customization options for automation, IoT gateways and edge computing projects.

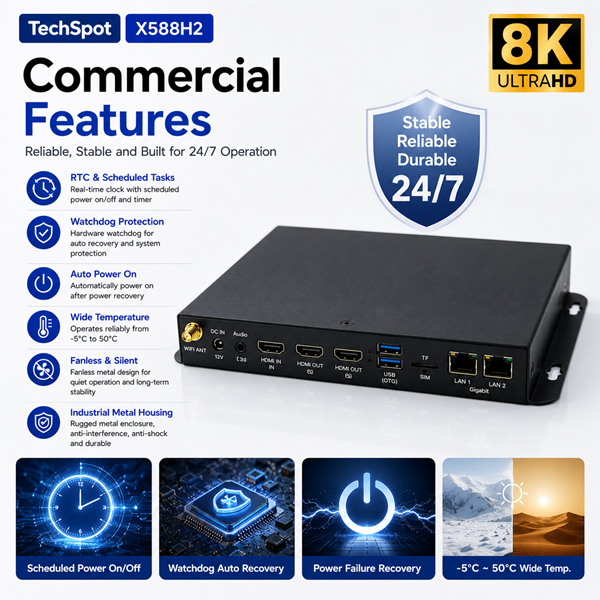

5. Reliable Fanless Industrial Design

Feature: Compact metal housing with fanless structure, RTC alarm support and wide operating temperature range (-5°C to 50°C).
Advantage: Ensures silent operation and long-term system stability.
Benefit: Designed for 24/7 commercial and industrial deployments.

Specifications

Processor

  • SoC: Rockchip RK3588
  • CPU: Quad-core Cortex-A76 + Quad-core Cortex-A55
  • Frequency: Up to 2.4GHz
  • NPU: 6 TOPS AI Accelerator
  • GPU: Mali-G610 MC4
  • Graphics API: OpenGL ES 1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0

System

  • Operating System: Android 12
  • Memory: 8GB LPDDR4X
  • Storage: 64GB eMMC Flash

Video & Audio

  • HDMI Output: 2× HDMI OUT (Type-A), supports up to 8K display output
  • HDMI Input: 1× HDMI IN (Type-A), supports up to 4K input
  • Audio: 1× 3.5mm Audio Jack

Network

  • LAN: 2× Gigabit Ethernet (10/100/1000Mbps)
  • Wireless: Wi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.0
  • Cellular Expansion: Mini PCIe slot for 4G/5G LTE module with SIM card support

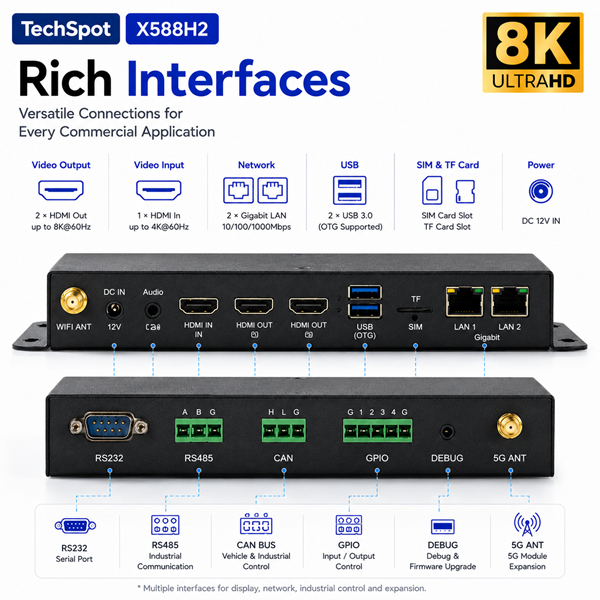

I/O Interface

Rear Panel

  • 2× USB Type-A
  • 2× HDMI OUT
  • 1× HDMI IN
  • 2× RJ45 Gigabit LAN
  • 1× 3.5mm Audio Jack
  • 1× DC 12V Input
  • Boot / Recover / Power buttons
  • 1× TF Card Slot
  • 1× SIM Card Slot

Front Panel

  • 4× USB 2.0
  • 3× COM (TTL / RS485)
  • 8-pin Phoenix Terminal (GPIO / CAN)

Mechanical

  • Material: Metal Housing
  • Color: Black
  • Dimension: 185.22 × 131.80 × 25.6 mm

Power

  • Input: DC 12V Power Adapter
  • Connector: 2.5/5.5mm DC Plug

Environment

  • Operating Temperature: -5°C ~ 50°C
  • Storage Temperature: -20°C ~ 70°C
  • Humidity: 10% ~ 90% RH (Non-condensing)

Recommended Applications

  • Digital Signage Player
  • Video Wall Controller
  • Smart Retail Display
  • AI Edge Computing
  • Industrial Automation
  • Conference Room System
  • Interactive Display Solution
